How to Choose the Right Irrigation Filter for Your Garden or Landscape
Clean water is essential for a reliable irrigation system. Even a small amount of sand, algae, rust or organic debris can block nozzles, restrict flow and affect the performance of sprinklers and drip irrigation.
Installing the correct filter helps protect your irrigation equipment, improve water distribution and reduce the time spent dealing with blockages and uneven watering.
Why irrigation filtration matters
Water sources are not always free from contaminants. Municipal water, boreholes, tanks, dams and rainwater systems can all carry particles that may enter irrigation pipework.
Common contaminants include:
- Sand and silt
- Algae
- Rust particles
- Organic matter
- Small pieces of pipe or fitting debris
- Sediment from storage tanks
Without suitable filtration, these particles can enter valves, emitters, sprinkler nozzles and pressure-control equipment. Over time, this may cause reduced flow, blocked components and inconsistent coverage.
A filter is one of the simplest ways to protect the rest of the irrigation system.
1. Identify your water source
The first step in choosing a filter is to consider where your irrigation water comes from.
Municipal water
Municipal water is generally cleaner than open water sources, but sediment can still enter the system through old pipes, plumbing work or damaged infrastructure. A suitable filter can help protect fine nozzles and drip irrigation components.
Borehole water
Borehole water may contain sand, silt or mineral particles. If the water carries visible sediment, filtration becomes especially important.
Rainwater tanks
Rainwater tanks can collect dust, leaves, insects and organic matter from roof surfaces and gutters. A filter helps prevent this material from reaching the irrigation network.
Dams and open water sources
Water drawn from dams, ponds or reservoirs may contain algae, plant material and heavier sediment. These systems usually require more careful filtration and regular maintenance.
2. Match the filter to the irrigation application
Different irrigation systems have different filtration requirements.
Sprinkler systems
Larger sprinkler nozzles may tolerate more debris than drip emitters, but a filter is still useful for protecting valves, controllers and moving components.
Drip irrigation
Drip systems usually require finer filtration because emitters have small internal passages that can block easily. A filter that is suitable for drip irrigation can help maintain consistent flow throughout the line.
Micro-irrigation
Micro-sprays, misters and small emitters are also sensitive to dirt and algae. Proper filtration is important where accurate, low-volume watering is required.
3. Understand disc filters and screen filters
Two common filter types used in irrigation are disc filters and screen filters.
Disc filters
Disc filters use a stack of grooved discs to trap particles as water passes through the filter. They are well suited to applications where the water may contain a mixture of sand, algae and organic debris.
Benefits may include:
- Good filtration performance
- Suitable for drip and micro-irrigation
- Easy cleaning and maintenance
- Effective removal of a range of particles
Turf-Ag supplies disc filters designed for irrigation applications where protection of emitters and fine irrigation components is important.

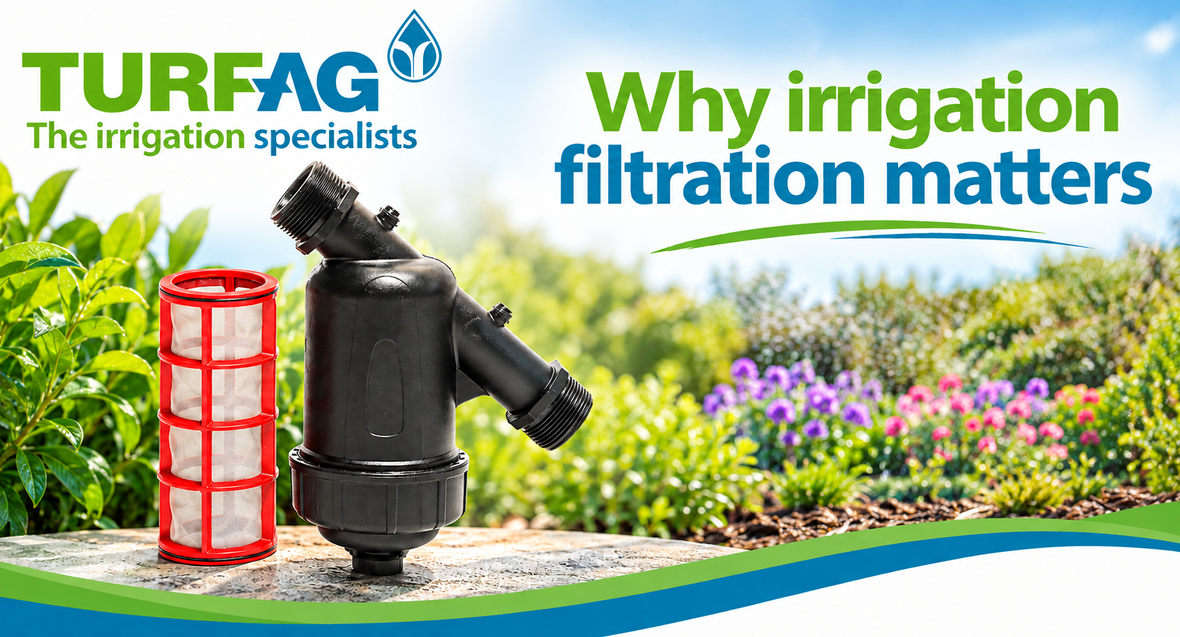

Screen filters
Screen filters use a mesh screen to trap particles. They are often used where the water contains relatively consistent levels of sediment and where easy inspection is helpful.
When selecting a screen filter, consider the mesh size, flow rate and the requirements of the irrigation equipment downstream.
4. Choose the correct filtration level
Filters are available in different filtration ratings. The correct option depends on the type of irrigation equipment being protected and the quality of the water source.
A finer filter is not automatically better for every system. If the filter is too fine for the available flow or water quality, it may block quickly and require frequent cleaning.
When choosing a filter, consider:
- The smallest passage in the system
- The type of emitters or nozzles being used
- The amount of sediment in the water
- The total flow rate
- The expected cleaning frequency
The goal is to remove harmful particles without unnecessarily restricting the water supply.
5. Check the flow rate and pipe size
A filter must be able to handle the flow required by the irrigation zone. If the filter is too small, it may create excessive pressure loss or restrict the system.
Before purchasing, check:
- The flow rate of the pump or water source
- The number of sprinklers or emitters operating at once
- The pipe size
- The inlet and outlet connection sizes
- The pressure available at the filter
A correctly sized filter helps maintain stable pressure and reliable system performance.
6. Install the filter in the correct position
A filter should generally be installed where it can protect the downstream irrigation equipment. Common locations include:
- After a pump
- Before irrigation valves
- Before drip irrigation lines
- Between the water source and the irrigation network
The correct location will depend on the system design and the type of contamination being addressed.
If a pump draws water from a tank, dam or borehole, additional protection may be needed before the pump or at the pump outlet. Always consider the full flow path from the water source to the sprinklers or emitters.
7. Clean the filter regularly
A filter only works effectively when it is maintained. As debris accumulates, water flow may reduce and pressure may change.
Signs that a filter may need cleaning include:
- Reduced sprinkler performance
- Weak flow at the end of a drip line
- Pressure loss across the filter
- Longer filling times
- Uneven irrigation coverage
- A filter housing that appears heavily contaminated
A basic maintenance routine may include:
- Switch off the water supply.
- Release pressure before opening the filter.
- Remove and inspect the filter element.
- Rinse away dirt and debris.
- Check for damage or deterioration.
- Reassemble the filter securely.
- Restore the water supply and check for leaks.
The correct cleaning method will depend on the filter design and manufacturer instructions.
8. Protect your system before the busy season
Spring and summer often bring increased irrigation demand. More frequent watering also means more water passes through the filter, which can increase the amount of debris collected.
Before the busy watering period, inspect:
- Filter housings
- O-rings and seals
- Connection points
- Flush valves
- Pressure gauges
- Downstream nozzles and emitters
Replacing a worn seal or cleaning a filter element early can help avoid interruptions when the irrigation system is needed most.
Common mistakes to avoid
Choosing a filter based only on price
The cheapest filter may not be suitable for the water quality, flow rate or irrigation application. A correctly matched filter often provides better long-term value.
Using a filter that is too small
An undersized filter can restrict flow and create unnecessary pressure loss.
Ignoring regular cleaning
Even a high-quality filter will eventually collect debris. Maintenance is part of protecting the irrigation system.
Assuming all irrigation systems need the same filter
A lawn sprinkler zone, a drip vegetable garden and a borehole-fed landscape may require different filtration solutions.
Irrigation filter checklist
Before selecting a filter, confirm:
- Water source
- Type of irrigation system
- Required filtration level
- Flow rate
- Pipe and connection size
- Available pressure
- Expected amount of sediment
- Cleaning and maintenance requirements
Protect your irrigation investment
A suitable irrigation filter helps protect nozzles, valves, emitters, pipes and other components from dirt and debris. It can also improve system reliability, reduce blockages and help maintain even water distribution.
Whether you are managing a home garden, a landscaped property or a larger irrigation system, selecting the right filter is an important part of good maintenance.
