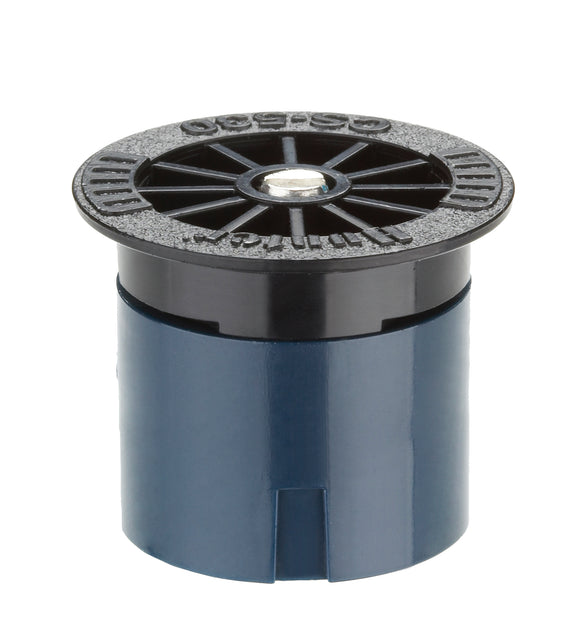

CS-530 - Centre Strip (1.5m x 9.1m)

Hunter SKU: 01103PRCS

R 41.40

Strip Pattern Nozzles

Irrigate narrow turf and planter areas accurately with fixed arc Strip Pattern Nozzles.

Radius 1.5 m and 2.7 m wide options

  • Designed for accurate coverage of narrow strip areas

  • Available in a variety of models for unique, rectangular spaces

  • Built to last in harsh conditions



Strip Pattern Nozzles Performance Data
Arc Pressure Width x Length Flow
• Nozzle Blue bar kPa m m³/hr l/min
LCS-515
Left Corner Strip
 1.0 100 1.2 x 4.2  0.10 1.7
1.5 150 1.2 x 4.3  0.13 2.1
2.0 200 1.5 x 4.5  0.15 2.4
2.1 210 1.5 x 4.5  0.15 2.5
2.5 250 1.5 x 4.5  0.16 2.7
RCS-515
Right Corner Strip
 1.0 100 1.2 x 4.2  0.10 1.7
1.5 150 1.2 x 4.3  0.13 2.1
2.0 200 1.5 x 4.5  0.15 2.4
2.1 210 1.5 x 4.5  0.15 2.5
2.5 250 1.5 x 4.5  0.16 2.7
SS-530
Side Strip
 1.0 100 1.2 x 8.5  0.21 3.5
1.5 150 1.5 x 9.0  0.25 4.2
2.0 200 1.5 x 9.0  0.29 4.9
2.1 210 1.5 x 9.0  0.30 5.0
2.5 250 1.5 x 9.0  0.33 5.5
ES-515
End Strip
 1.0 100 1.1 x 4.2  0.10 1.7
1.5 150 1.2 x 4.3  0.13 2.1
2.0 200 1.5 x 4.5  0.15 2.4
2.1 210 1.5 x 4.5  0.15 2.5
2.5 250 1.5 x 4.5  0.16 2.7
CS-530
Center Strip
 1.0 100 1.2 x 8.5  0.21 3.5
1.5 150 1.5 x 9.0  0.25 4.2
2.0 200 1.5 x 9.0  0.29 4.9
2.1 210 1.5 x 9.0  0.30 5.0
2.5 250 1.5 x 9.0  0.33 5.5
SS-918
Side Strip
 1.0 100 2.4 x 5.2  0.27 4.5
1.5 150 2.7 x 5.5  0.33 5.5
2.0 200 2.7 x 5.5  0.38 6.4
2.1 210 2.7 x 5.5  0.39 6.5
2.5 250 2.7 x 5.5  0.43 7.1
