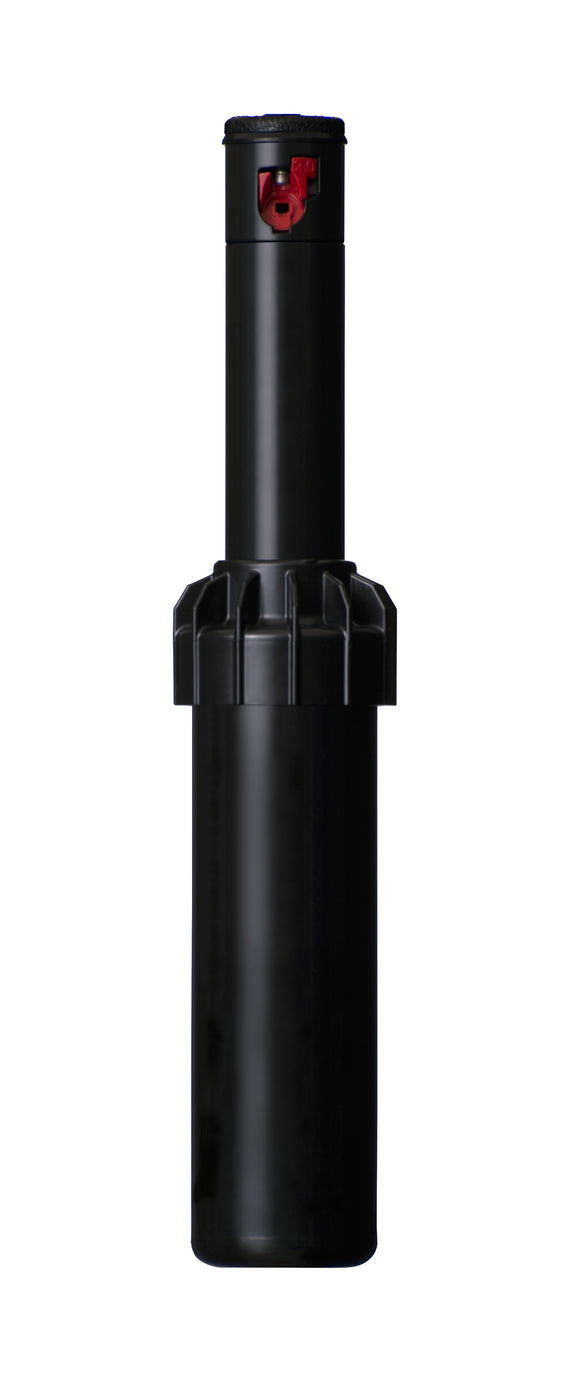

PGJ - Pop-Up

Hunter SKU: 01104PGJA

R 296.70

The highly durable PGJ offers all the benefits of a large rotor in a compact, spray-sized package, with water-efficient nozzles and easy arc adjustment.

The PGJ was built to bring all the efficient benefits of rotary sprinklers to applications that typically call for a spray. Its many features include a rack of easily installable, water-efficient nozzles, a QuickCheckTM Arc Mechanism, and a durable rubber cover. The PGJ is capable of working in tandem with larger rotors to combine big and small areas in a single zone, offering a convenience and efficiency that sprays do not. When used in the right application, the PGJ allows fewer heads to perform more efficiently at a more economical price.

Radius 4.3 to 10.7 m
Flow 1.4 to 16.7 l/min
Inlet Size ½"

Compact: Get all the benefits of a rotor in a spray-sized package

Short Radius: Get close-in rotor coverage with a 4.3 m minimum radius

Reliable: The PGJ is engineered to take on harsh conditions for years on end



Operating Specifications

  • Nozzle choices: 8
  • Radius: 4.3 to 10.7 m
  • Flow: 0.08 to 1.0 m3/hr; 1.4 to 16.7 l/min
  • Recommended pressure range: 1.7 to 3.8 bar; 170 to 380 kPa
  • Operating pressure range: 1.4 to 7.0 bar; 140 to 700 kPa
  • Precipitation rate: 15 mm/hr approximately
  • Nozzle trajectory: 15° approximately
  • Warranty period: 2 years



PGJ Nozzle Performance Data

View Nozzle

Nozzle Pressure Radius Flow Precip mm/hr
  bar kPa m m³/hr l/min

0.50 •

Red
 1.7 170 4.3 0.08 1.4 9 11
2.0 200 4.3 0.09 1.8 10 12
2.5 250 4.6 0.11 1.8 10 12
3.0 300 4.6 0.12 2.0 12 13
3.5 350 4.9 0.13 2.2 11 13
3.8 380 4.9 0.14 2.3 12 14

.75 •

Red
 1.7 170 4.3 0.13 2.2 14 17
2.0 200 4.6 0.14 2.4 14 16
2.5 250 4.9 0.16 2.7 13 15
3.0 300 5.2 0.18 3.0 13 15
3.5 350 5.2 0.19 3.2 14 17
3.8 380 5.5 0.20 3.4 13 15

1.0 •

Red
 1.7 170 5.2 0.18 3.0 13 15
2.0 200 5.5 0.19 3.2 13 15
2.5 250 5.5 0.21 3.5 14 16
3.0 300 5.8 0.23 3.8 14 16
3.5 350 5.8 0.24 4.1 15 17
3.8 380 6.1 0.25 4.2 14 16

1.5 •

Red
 1.7 170 6.1 0.27 4.5 15 17
2.0 200 6.4 0.29 4.8 14 16
2.5 250 6.4 0.32 5.4 16 18
3.0 300 6.7 0.36 6.0 16 18
3.5 350 6.7 0.39 6.4 17 20
3.8 380 7.0 0.40 6.7 16 19

2.0 •

Red
 1.7 170 7.0 0.34 5.6 14 16
2.0 200 7.3 0.37 6.2 14 16
2.5 250 7.3 0.42 7.1 16 18
3.0 300 7.6 0.48 8.0 17 19
3.5 350 7.6 0.53 8.8 18 21
3.8 380 7.9 0.56 9.3 18 20

2.5 •

Red
 1.7 170 7.9 0.46 7.6 15 17
2.0 200 8.2 0.49 8.1 14 17
2.5 250 8.2 0.54 9.0 16 18
3.0 300 8.5 0.59 9.8 16 19
3.5 350 8.5 0.63 10.5 17 20
3.8 380 8.8 0.65 10.9 17 19

3.0 •

Red
 1.7 170 8.8 0.51 8.5 13 15
2.0 200 9.1 0.56 9.3 13 15
2.5 250 9.1 0.64 10.6 15 18
3.0 300 9.4 0.72 12.0 16 19
3.5 350 9.4 0.78 13.1 18 20
3.8 380 9.8 0.82 13.7 17 20

4.0 •

Red
 1.7 170 9.8 0.80 13.3 17 19
2.0 200 10.1 0.83 13.8 16 19
2.5 250 10.1 0.89 14.8 18 20
3.0 300 10.4 0.94 15.7 17 20
3.5 350 10.4 0.98 16.3 18 21
3.8 380 10.7 1.00 16.7 18 20
Notes:
All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.
